“Gritsik” repeater carrier

Looking for donations
Looking for customers
The Brave Inventors platform, supported by the Brave Foundation (hereinafter referred to as the Foundation), as well as the founders of the Foundation, employees, contractors, volunteers are not responsible for: 1) any negative consequences, including damages, that may arise in connection with the use of information or materials presented on the site by third parties; 2) any aspects of interaction between inventors (including their founders, employees, contractors), whose inventions are presented on the site, and third parties interested in such inventions, as well as for any consequences of such interaction, including negative ones (including potential losses). The Foundation notes that any transactions, arrangements or other interaction between inventors (including their founders, employees, contractors) and third parties interested in the inventions listed on the site are at the parties\' own risk and do not depend on the Foundation. At the same time, the Foundation may provide organizational support to the parties interested in cooperation regarding the inventions presented on the website for more effective communication and organization of the necessary support to such persons.
Type
Mobile power stations and communication stations
Stage
TRL 8 — Technology is complete and qualified, design documentation is available. Preparations for mass production are underway
There is production
Detailed information

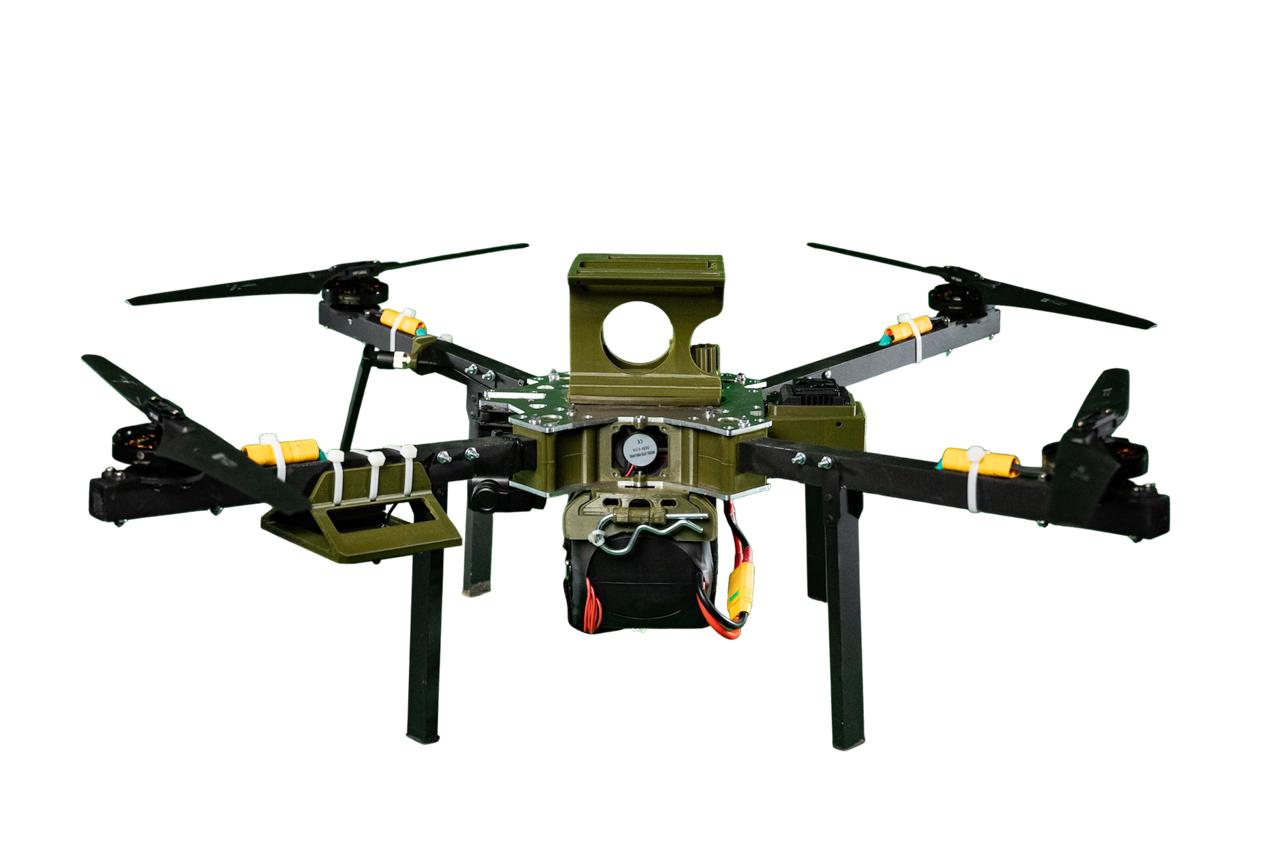

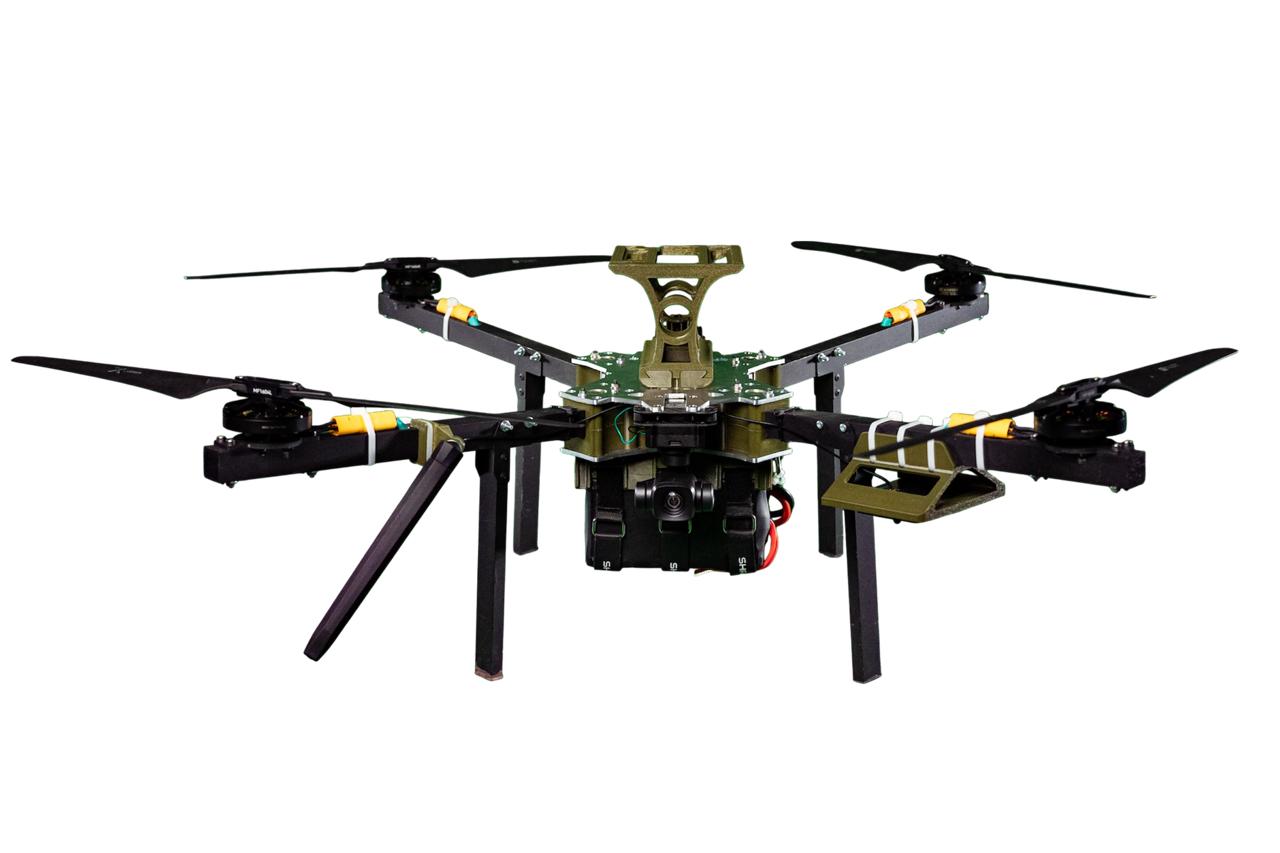

An unmanned carrier with optical stabilization designed to lift a radio signal repeater to a height of up to 1,500 m with the ability to operate without GPS and in difficult weather conditions.

Purpose:

The repeater carrier lifts the radio signal repeater to a height of over 1300 m to create a direct radio horizon for controlling FPV drones and hitting targets that are inaccessible due to terrain relief. It is used as an alternative to DJI Matrice to ensure the operation of UAV crews.

Specifications:

  • Communication system (control and video) — digital
  • Maximum operating altitude — up to 1500 m

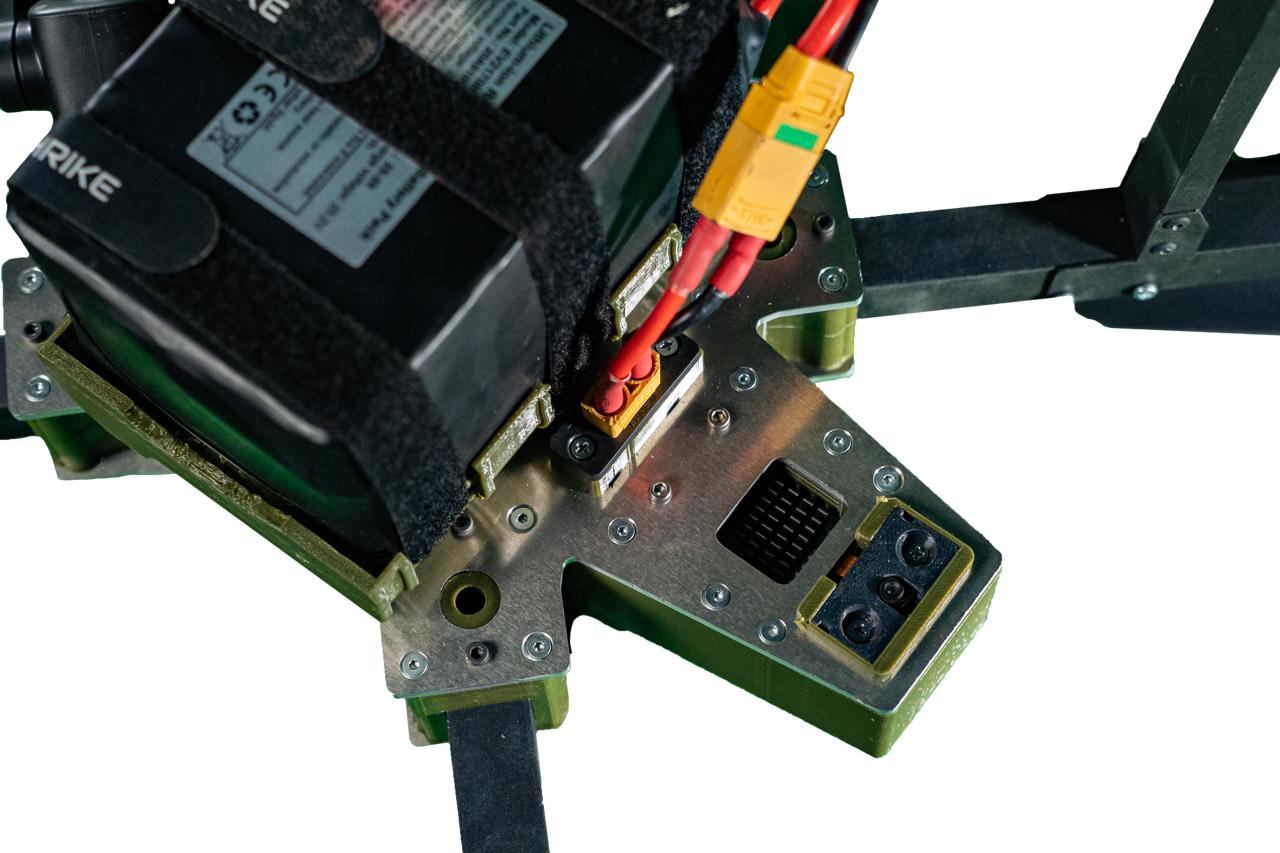

  • Flight duration — up to 35 minutes on 1 6s4p 20000 mAh battery
  • Payload (transponder weight) — up to 1 kg
  • Transmission range — 30+ km
  • Optical stabilization
  • Independence from GPS jamming
  • Automatic return to take-off point — yes
  • Stabilized camera (gimbal)

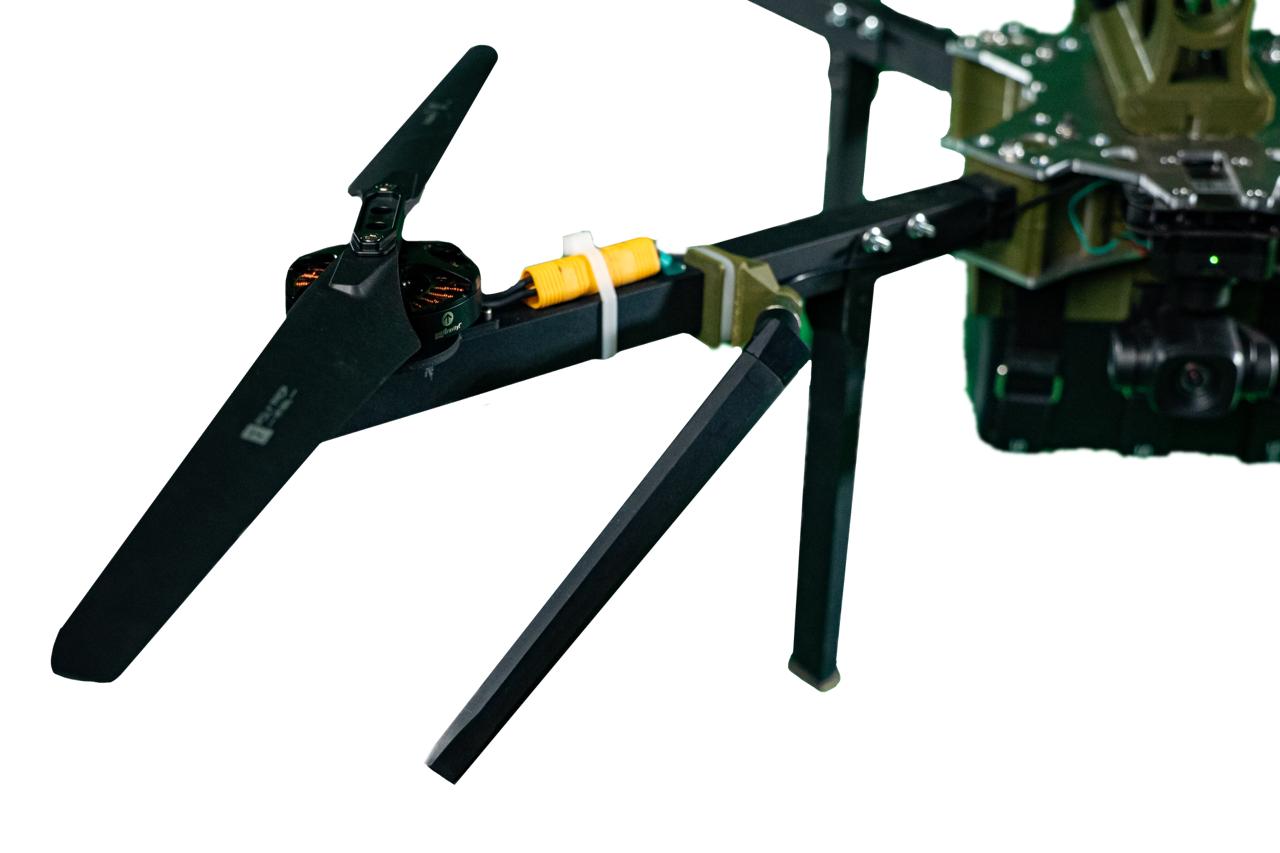

  • Proprietary frame design with reinforced body
  • Moisture-proof body

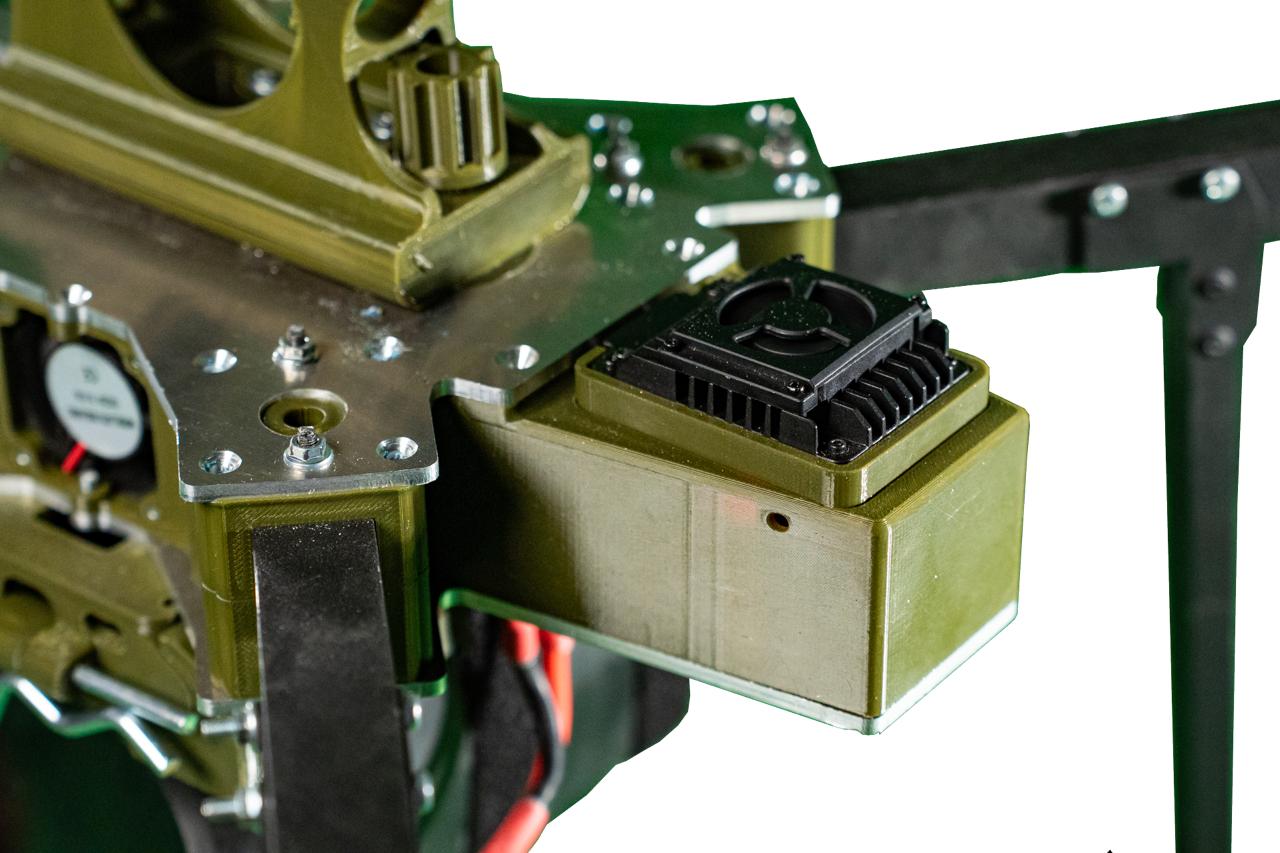

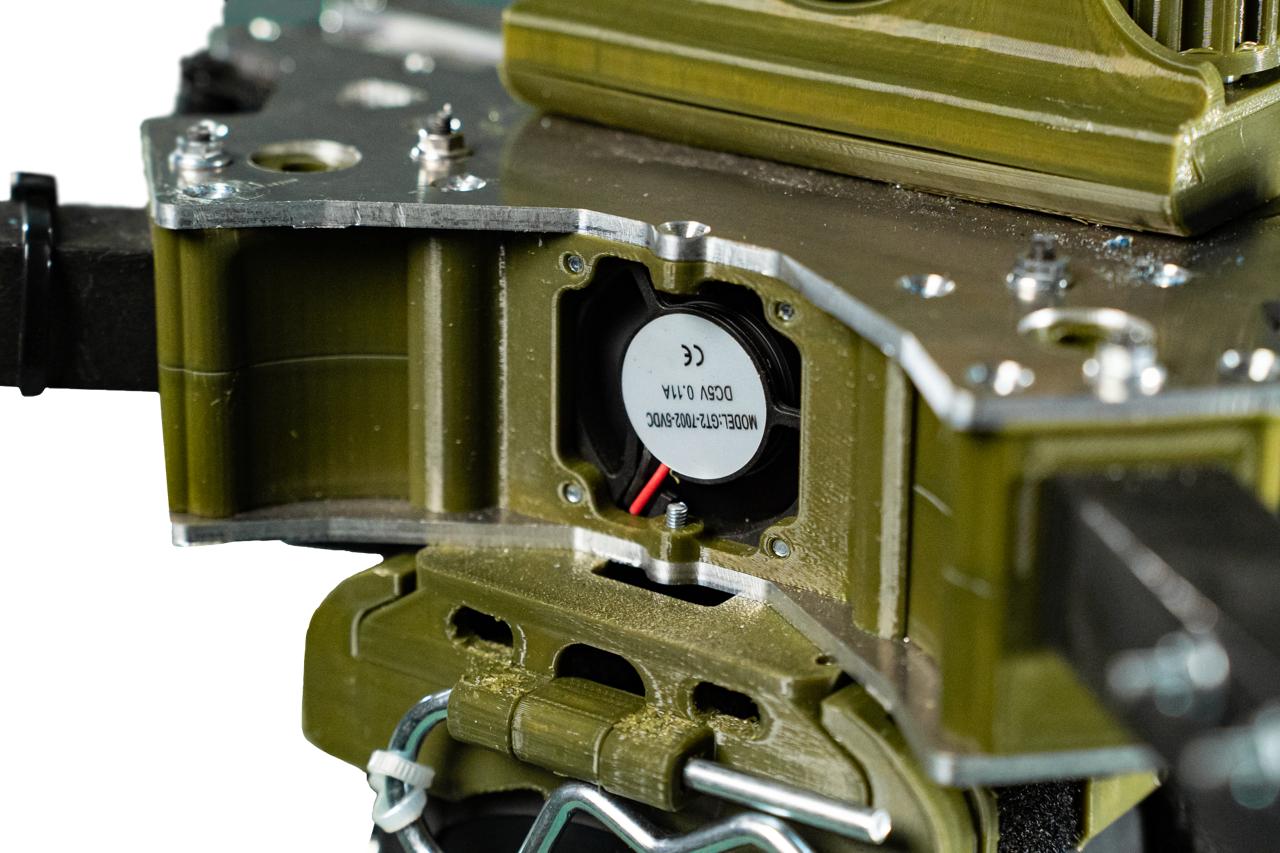

  • Exhaust ventilation to prevent condensation
  • Internal cable management

Advantages:

  • Operates for over 30 minutes on a standard 6s battery (no need for 8s or 12s)

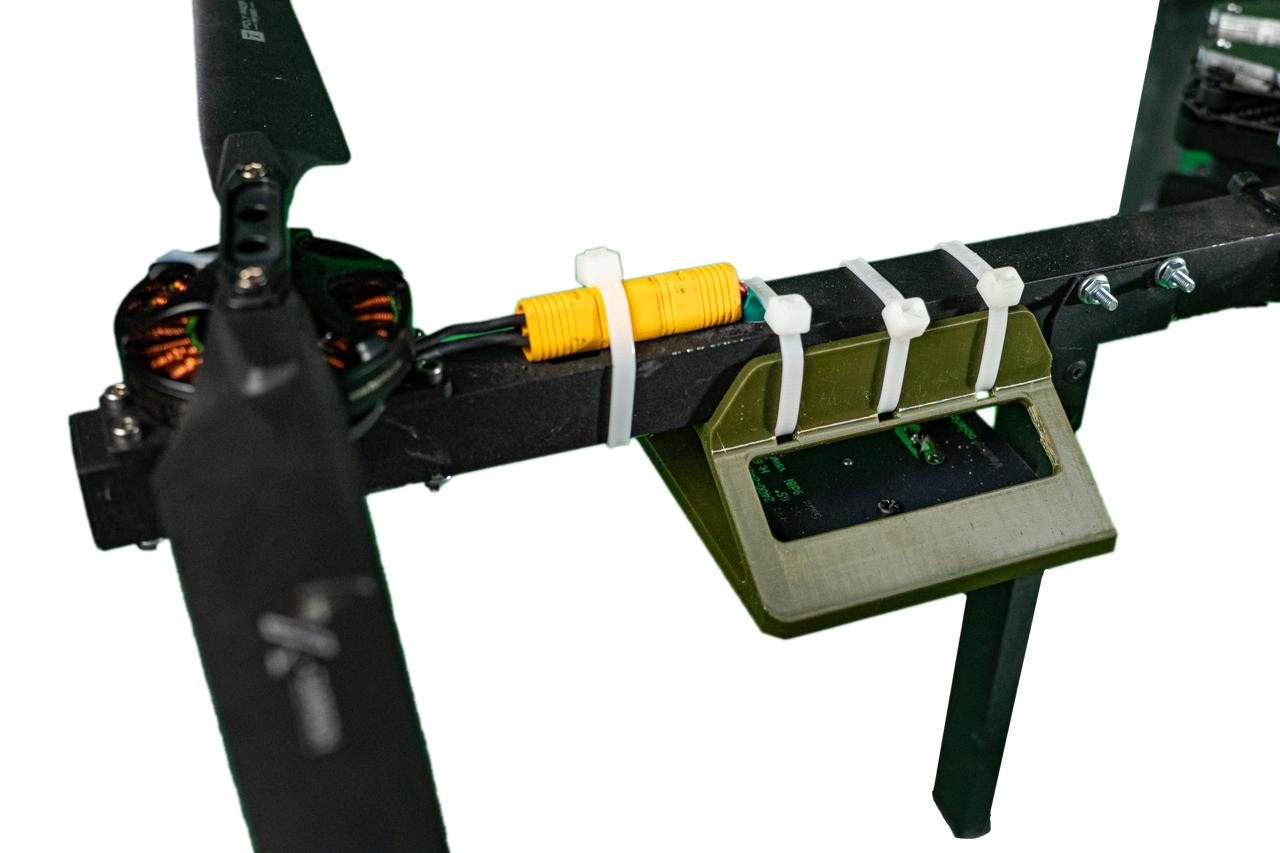

  • Energy-efficient propeller motor group
  • 100% compatible with existing ground infrastructure (antennas, cables) used with DJI Matrice
  • Stable operation at an altitude of 1300–1500 m without GPS dependence
  • Resistance to spoofing
  • Modern digital communication system with the ability to simultaneously display two video streams
  • Ability to control the gimbal and zoom the image
  • Increased survivability thanks to a stabilized camera
  • Frame design adapted based on combat experience

“Gritsik” repeater carrier

Looking for donations
Looking for customers
The Brave Inventors platform, supported by the Brave Foundation (hereinafter referred to as the Foundation), as well as the founders of the Foundation, employees, contractors, volunteers are not responsible for: 1) any negative consequences, including damages, that may arise in connection with the use of information or materials presented on the site by third parties; 2) any aspects of interaction between inventors (including their founders, employees, contractors), whose inventions are presented on the site, and third parties interested in such inventions, as well as for any consequences of such interaction, including negative ones (including potential losses). The Foundation notes that any transactions, arrangements or other interaction between inventors (including their founders, employees, contractors) and third parties interested in the inventions listed on the site are at the parties\' own risk and do not depend on the Foundation. At the same time, the Foundation may provide organizational support to the parties interested in cooperation regarding the inventions presented on the website for more effective communication and organization of the necessary support to such persons.
looking for donations
looking for customers
Fundraising amount
17 266 $
What are we fundraising for?

Purpose of funds: Provision of carriers for the platoon of RBS 2MB 3OShBr strike unmanned aerial systems

The cost
2 638 $
