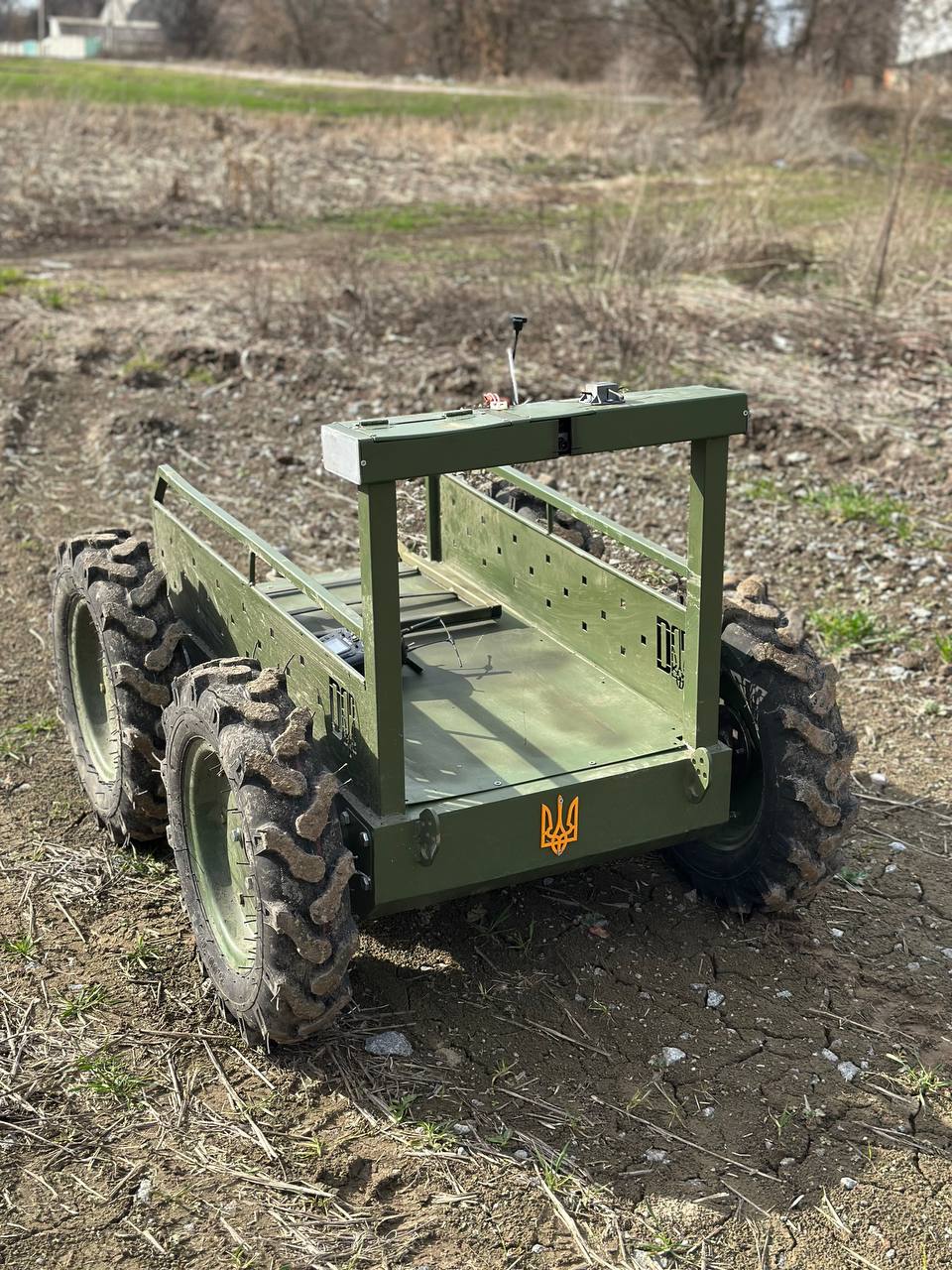

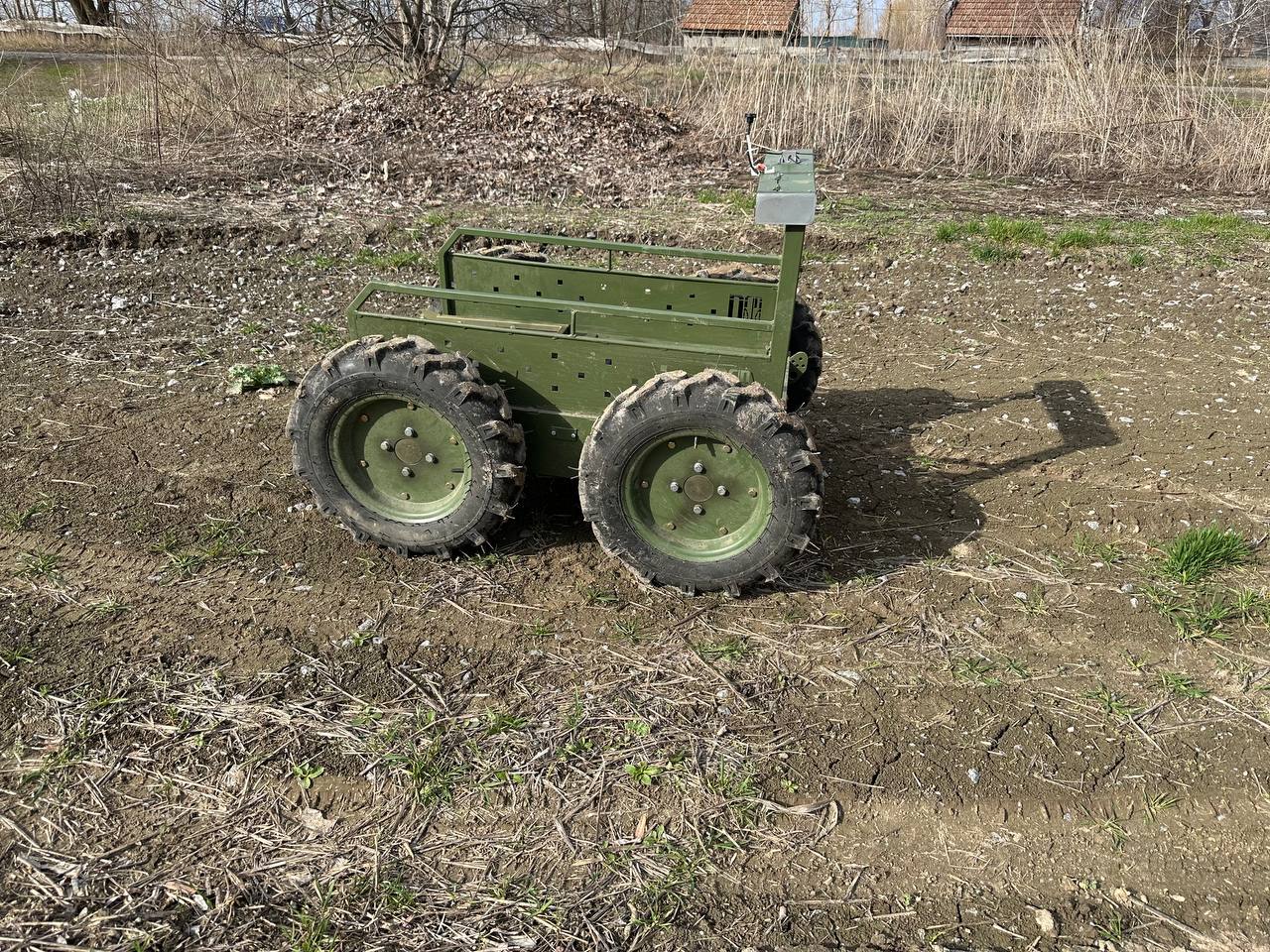

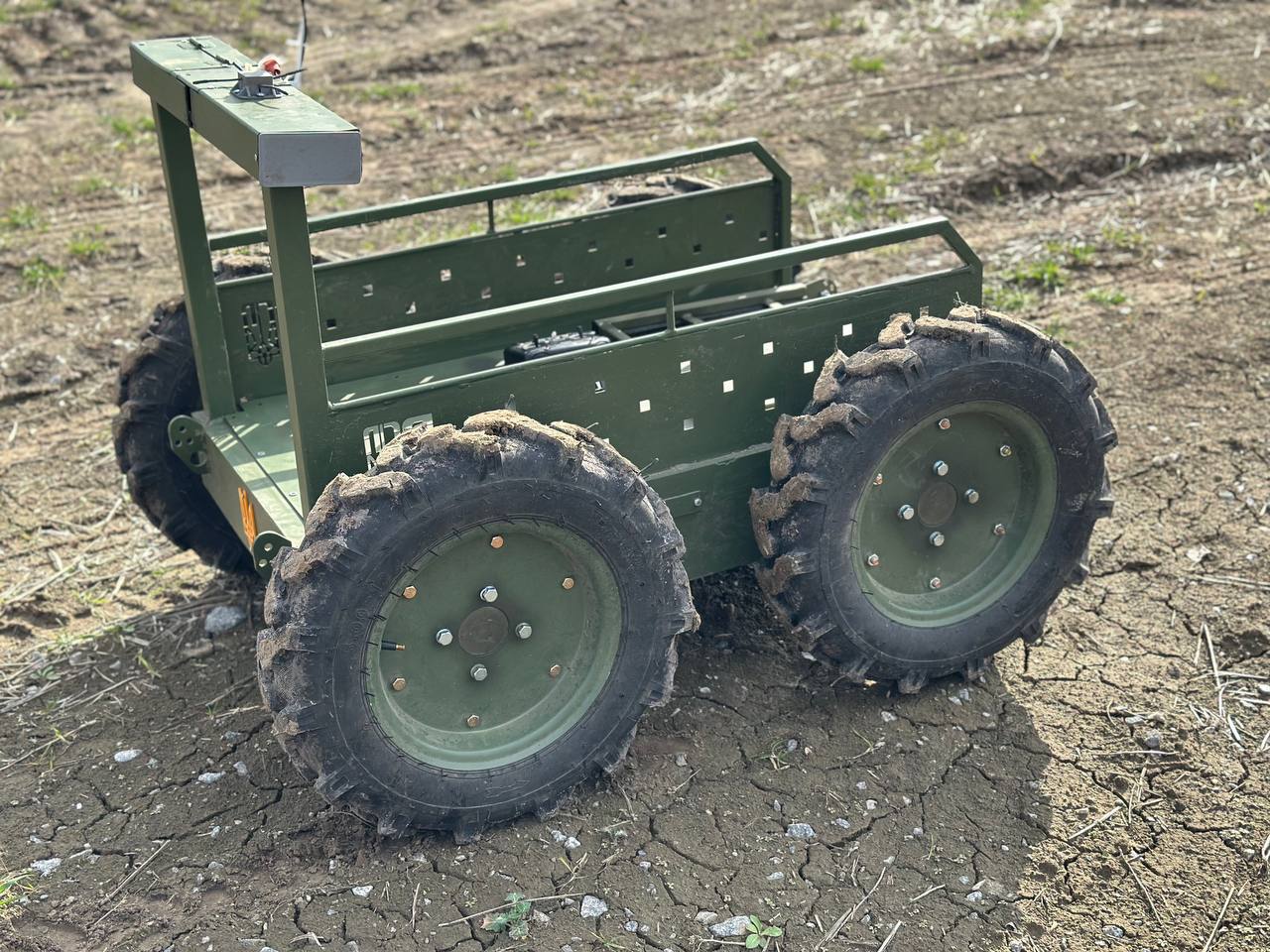

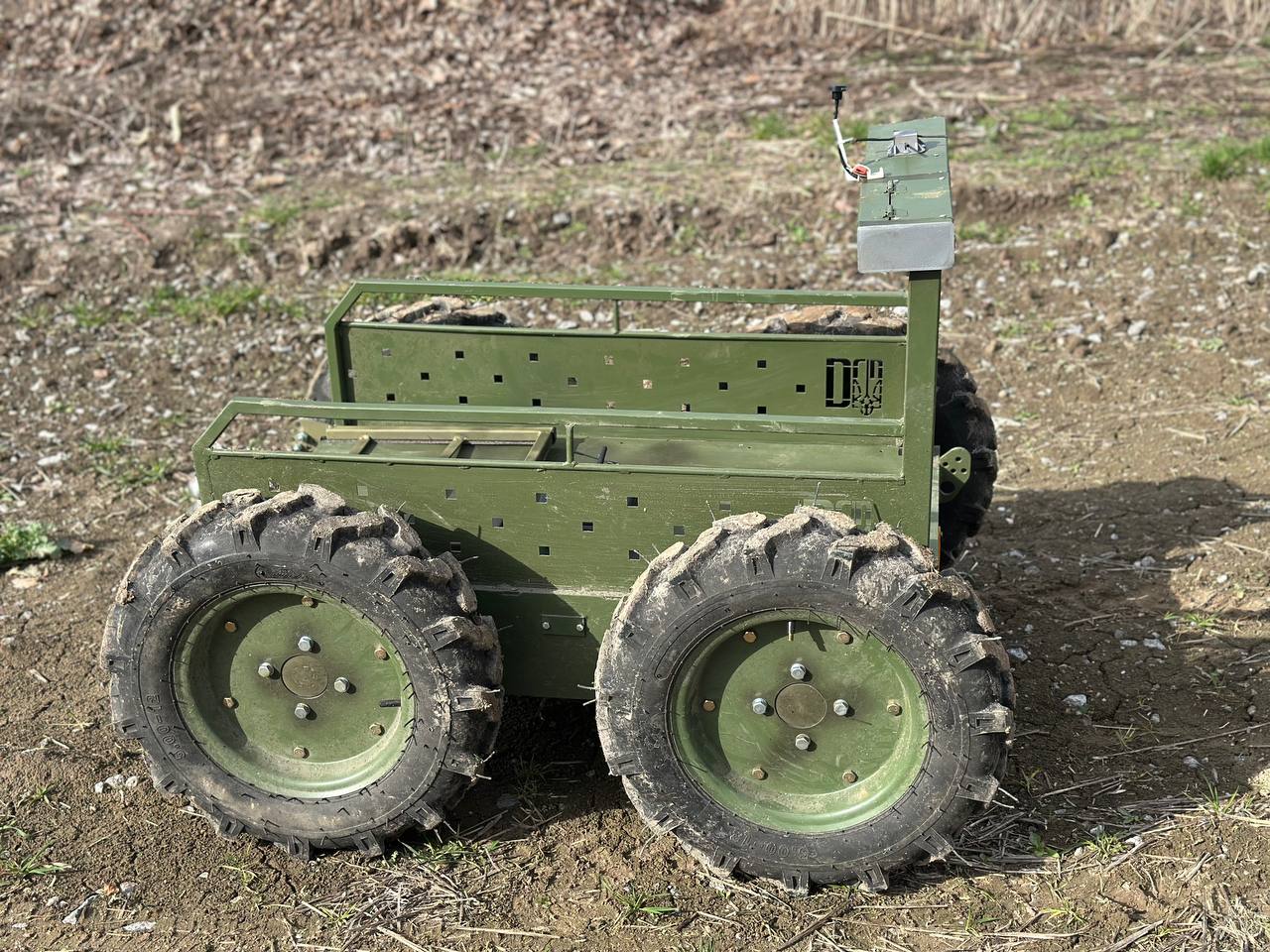

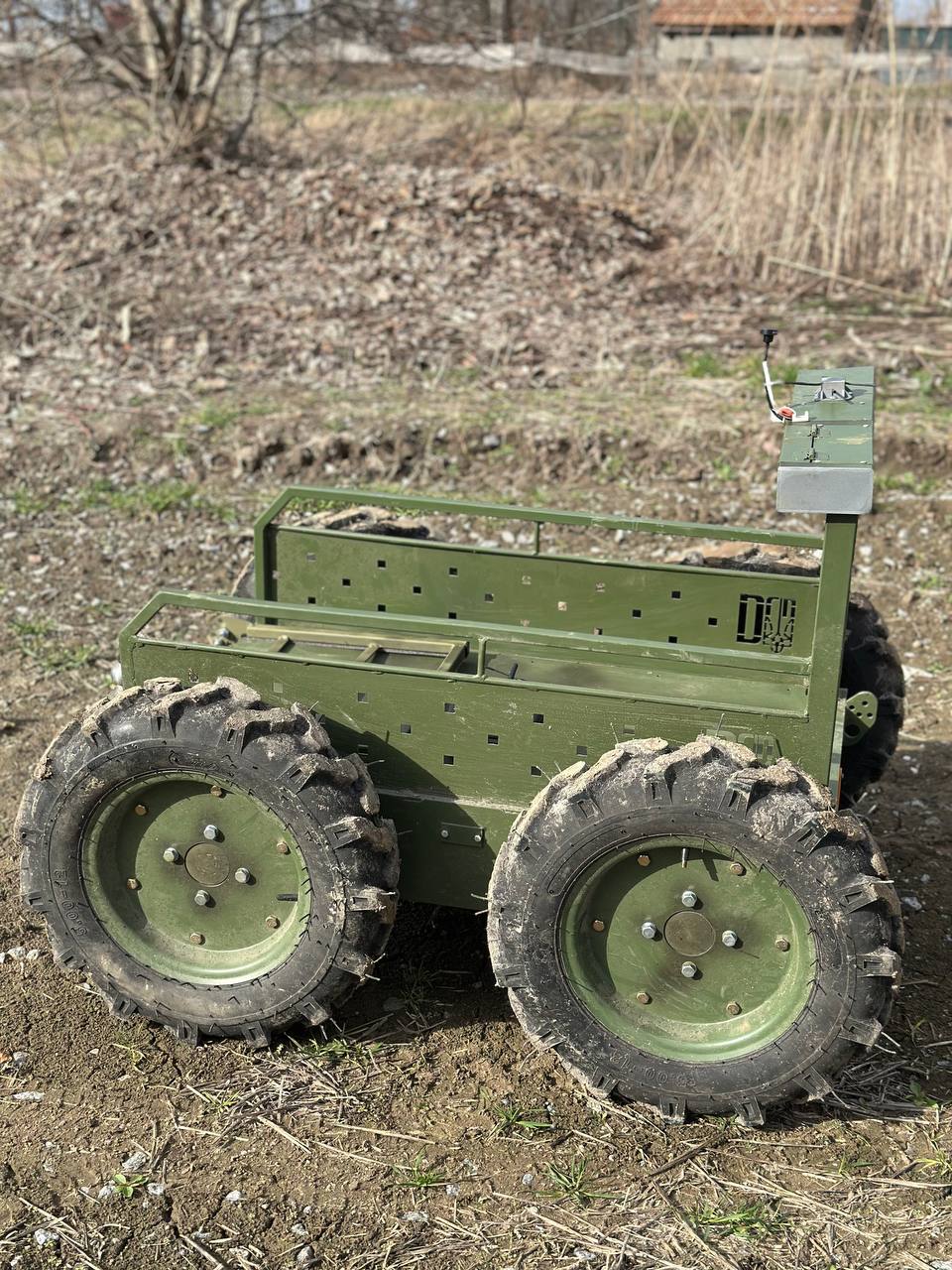

A versatile robotic platform for delivery, evacuation and performance of engineering and combat tasks in the combat zone.
The purpose of
is to provide mobile logistics on the front line: delivering ammunition, food or water directly to positions, evacuating the wounded, and performing specialized tasks such as mining, demining or weaponry. Thanks to the possibility of expanding the functionality with the help of trailed and mounted equipment, the platform adapts to different combat scenarios and the needs of units.
Specifications
– Engine power: 4 kW
– Weight 185 kg
– Dimensions (working position): 1000×1250×1300 mm
– Dimensions (transport position): 1000×1350×650 mm
– Ground clearance: 190 mm
– Maximum lifting angle: 30°
– Payload: up to 250 kg
– Towing load (trailer): 300 kg
– Power reserve: 15 km (can be increased)
– Travel speed: up to 20 km/h
– Control range: up to 1000 m (line of sight), up to 4000 m with a repeater
– Control: RadioMaster 915 MHz remote control, FPV connection possible
– Power supply: Li-ion battery LG 48V, 66Ah (designed for 2500 cycles)
Advantages
– Modular design with the possibility of installing trailed or mounted equipment
– Work in difficult conditions: sand, mud, grass, bushes
– Easy operation: operated by one person
– Option to install weapons and engineering solutions (demining, mining)
– Operates at temperatures from -15 to +45°C
– Possibility of autonomous logistics on the front line
Inventor / company: http://sokillsky.tech/
